一、目標
用xml和Xapth做一個簡單的數據管理系統,對數據的進行簡單的增、刪、改、查詢操作。如做一個簡單的班級學生信息管理系統:
二、環境及開發工具
環境:Java
工具:EcliPSe
開發包:如圖
三、原理
dom4j是一個Java的XML API,類似于jdom,用來讀寫XML文件的。dom4j是一個非常非常優秀的Java XML API,具有性能優異、功能強大和極端易用使用的特點,同時它也是一個開放源代碼的軟件,可以在SourceForge上找到它。
XPath 是一門在 XML 文檔中查找信息的語言。XPath 用于在 XML 文檔中通過元素和屬性進行導航。XPath 使用路徑表達式在 XML 文檔中選取節點。節點是通過沿著路徑或者 step 來選取的。
用Xpath定位到相應節點,用dom4j進行增、刪、改。
四,類分析,如下圖:
addframe:執行添加操作時顯示的界面。
allfunction:對xml操作各功能的實現。
alterframe:執行修改操作時顯示的界面。

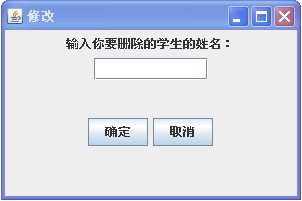

deleteframe:執行刪除操作時顯示的界面。

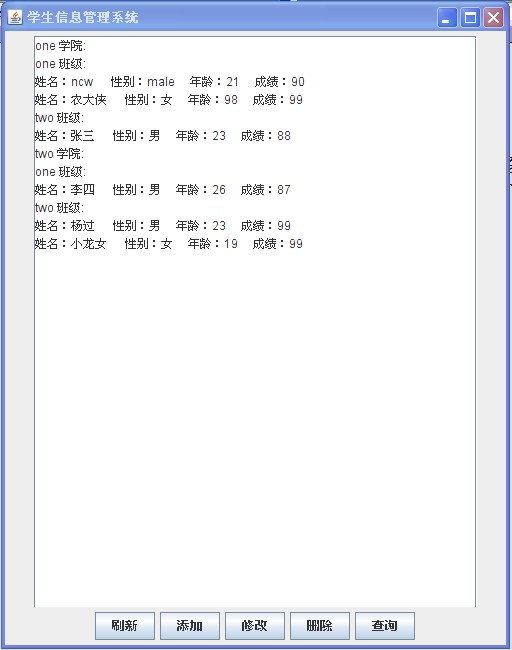

mainframe:主界面
queryframe:執行查詢操作時顯示的界面。
五、主要實現如下:
import java.io.File; import java.io.FileOutputStream; import java.io.FileWriter; import java.io.IOException; import java.util.Iterator; import java.util.List; import org.dom4j.xpath.*; import javax.xml.parsers.ParserConfigurationException; import javax.xml.xpath.*; import org.dom4j.Attribute; import org.dom4j.Document; import org.dom4j.DocumentHelper; import org.dom4j.Element; import org.dom4j.io.OutputFormat; import org.dom4j.io.SAXReader; import org.dom4j.io.XMLWriter; import org.xml.sax.SAXException; /** * @author ncw * create the function */ public class allfunction { /* * 獲取全部信息 */ public String getall(){ String allinformation=""; try { SAXReader saxReader = new SAXReader(); //saxReader.setEncoding("UTF-8"); Document document = saxReader.read(new java.io.File("manage.xml")); List academylist = document.selectNodes("/school/academy" ); for(int i=0;i<academylist.size();i++) { Element academyElement = (Element)academylist.get(i); allinformation=allinformation+academyElement.attribute("aid").getValue(); allinformation+=" 學院: "+"\n"; Iterator classiterator = academyElement.elementIterator("class"); while(classiterator.hasNext()) { Element classElement = (Element)classiterator.next(); allinformation+=classElement.attribute("cid").getValue(); allinformation+=" 班級: "+"\n"; Iterator studentiterator = classElement.elementIterator("student"); while(studentiterator.hasNext()) { Element studentElement=(Element)studentiterator.next(); allinformation+="姓名:"; allinformation+=studentElement.elementText("name"); allinformation+=" 性別:"; allinformation+=studentElement.elementText("sex"); allinformation+=" 年齡:"; allinformation+=studentElement.elementText("age"); allinformation+=" 成績:"; allinformation+=studentElement.elementText("grade"); allinformation+="\n"; } } } }catch(Exception ex) { ex.printStackTrace(); } return allinformation; } /* * 獲得一個學生的信息 */ public String getperson(String name) { String person=""; try { SAXReader saxReader = new SAXReader(); Document document = saxReader.read(new java.io.File("manage.xml")); List classlist = document.selectNodes("/school/academy/class" ); Iterator classiterator = classlist.iterator(); while(classiterator.hasNext()) { Element classElement = (Element)classiterator.next(); Iterator studentiterator = classElement.elementIterator("student"); while(studentiterator.hasNext()) { Element studentElement=(Element)studentiterator.next(); if(studentElement.elementText("name").equals(name)) { person+="學院:"+classElement.getParent().attributeValue("aid")+"\n"; person+="班級:"+classElement.attributeValue("cid")+"\n"; person+="姓名:"+studentElement.elementText("name"); person+=" 性別:"+studentElement.elementText("sex"); person+=" 年齡:"+studentElement.elementText("age"); person+=" 成績:"+studentElement.elementText("grade"); } } } }catch(Exception ex) { ex.printStackTrace(); } return person; } /* * 刪除一個學生的信息 */ public boolean delete(String name) { boolean deleted=false; try { SAXReader saxReader = new SAXReader(); Document document = saxReader.read(new java.io.File("manage.xml")); List classlist = document.selectNodes("/school/academy/class"); Iterator classiterator = classlist.iterator(); while(classiterator.hasNext()) { Element classElement = (Element)classiterator.next(); Iterator studentiterator = classElement.elementIterator("student"); while(studentiterator.hasNext()) { Element studentElement=(Element)studentiterator.next(); if(studentElement.elementText("name").equals(name)) { classElement.remove(studentElement); deleted=true; } } } try{ /** 格式化輸出,類型IE瀏覽一樣 */ OutputFormat format = OutputFormat.createPrettyPrint(); /** 指定XML編碼 */ format.setEncoding("GBK"); /** 將document中的內容寫入文件中 */ // XMLWriter writer = new XMLWriter(new FileWriter(new File(newfilename)),format); //保證編碼為UTF-8,支持中文寫入 XMLWriter writer = new XMLWriter(new FileOutputStream(new File("manage.xml")),format); writer.write(document); writer.close(); }catch(Exception ex){ ex.printStackTrace(); } }catch(Exception ex) { ex.printStackTrace(); } return deleted; } /* * 修改一個學生的信息 */ public boolean alter(String aid,String cid,String name,String sex,String age,String grade) { boolean altered=false; try{ /* aid=new String(aid.getBytes("ISO8859-1"),"UTF-8"); cid=new String(cid.getBytes("ISO8859-1"),"UTF-8"); name=new String(name.getBytes("ISO8859-1"),"UTF-8"); sex=new String(sex.getBytes("ISO8859-1"),"UTF-8"); age=new String(age.getBytes("ISO8859-1"),"UTF-8"); grade=new String(grade.getBytes("ISO8859-1"),"UTF-8"); */ SAXReader saxReader = new SAXReader(); Document document = saxReader.read(new java.io.File("manage.xml")); List academylist = document.selectNodes("/school/academy" ); Iterator academyiterator = academylist.iterator(); while(academyiterator.hasNext()) { Element academyElement = (Element) academyiterator.next(); if(academyElement.attribute("aid").getValue().equals(aid)); Iterator classiterator = academyElement.elementIterator("class"); while(classiterator.hasNext()) { Element classElement = (Element)classiterator.next(); if(classElement.attribute("cid").getValue().equals(cid)); Iterator studentiterator = classElement.elementIterator("student"); while(studentiterator.hasNext()) { Element studentElement=(Element)studentiterator.next(); if(studentElement.elementText("name").equals(name)) { Element sexElement=studentElement.element("sex"); sexElement.setText(sex); Element ageElement=studentElement.element("age"); ageElement.setText(age); Element gradeElement=studentElement.element("grade"); gradeElement.setText(grade); altered=true; } } } } try{ /** 格式化輸出,類型IE瀏覽一樣 */ OutputFormat format = OutputFormat.createPrettyPrint(); /** 指定XML編碼 */ format.setEncoding("GBK"); /** 將document中的內容寫入文件中 */ // XMLWriter writer = new XMLWriter(new FileWriter(new File(newfilename)),format); //保證編碼為UTF-8,支持中文寫入 XMLWriter writer = new XMLWriter(new FileOutputStream(new File("manage.xml")),format); writer.write(document); writer.close(); }catch(Exception ex){ ex.printStackTrace(); } }catch(Exception ex) { ex.printStackTrace(); } return altered; } /* * 添加一個學生的信息 */ public boolean add(String aid,String cid,String name,String sex,String age,String grade) { boolean add = false; try { /* aid=new String(aid.getBytes("ISO8859-1"),"UTF-8"); cid=new String(cid.getBytes("ISO8859-1"),"UTF-8"); name=new String(name.getBytes("ISO8859-1"),"UTF-8"); sex=new String(sex.getBytes("ISO8859-1"),"UTF-8"); age=new String(age.getBytes("ISO8859-1"),"UTF-8"); grade=new String(grade.getBytes("ISO8859-1"),"UTF-8"); */ SAXReader saxReader = new SAXReader(); Document document = saxReader.read(new java.io.File("manage.xml")); List academylist = document.selectNodes("/school/academy"); Iterator academyiterator = academylist.iterator(); while (academyiterator.hasNext()) { Element academyElement = (Element) academyiterator.next(); if (academyElement.attribute("aid").getValue().equals(aid)) { Iterator classiterator = academyElement.elementIterator("class"); while (classiterator.hasNext()) { Element classElement = (Element) classiterator.next(); if (classElement.attribute("cid").getValue().equals(cid)) { Element studentElement = classElement.addElement("student"); Element nameElement = studentElement.addElement("name"); nameElement.setText(name); Element sexElement = studentElement.addElement("sex"); sexElement.setText(sex); Element ageElement = studentElement.addElement("age"); ageElement.setText(age); Element gradeElement = studentElement.addElement("grade"); gradeElement.setText(grade); add = true; } } } } try{ /** 格式化輸出,類型IE瀏覽一樣 */ OutputFormat format = OutputFormat.createPrettyPrint(); /** 指定XML編碼 */ format.setEncoding("GBK"); /** 將document中的內容寫入文件中 */ // XMLWriter writer = new XMLWriter(new FileWriter(new File(newfilename)),format); //保證編碼為UTF-8,支持中文寫入 XMLWriter writer = new XMLWriter(new FileOutputStream(new File("manage.xml")),format); writer.write(document); writer.close(); }catch(Exception ex){ ex.printStackTrace(); } }catch(Exception ex) { ex.printStackTrace(); } return add; } }
alterframe deleteframe mainframe queryframe等類則實現相應的界面顯示。
相應xml結構如下:
六:總結:
1 功能簡單,操作不夠靈活
2 在對數據的讀入與存儲上有待改進。
